MIXING WEIGHER
The spark series weigher is capable of mixing up to 8 kinds of products.
With the boost of memory bucket, multiple products mixing can be
achieved with minimum number of heads with no comprise on the
combination possibility.
Various bucket capacities are available to handle from small portion mixing to large weight mixing

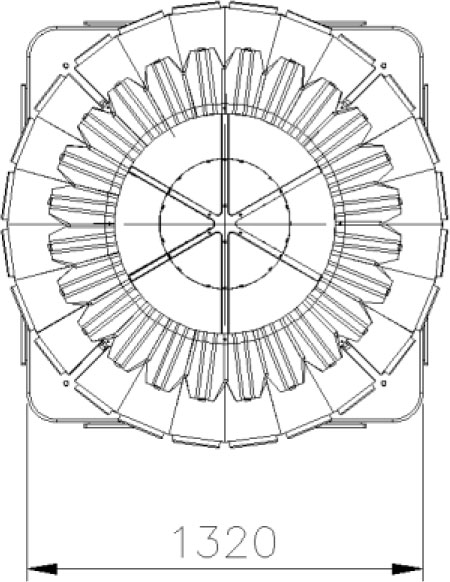

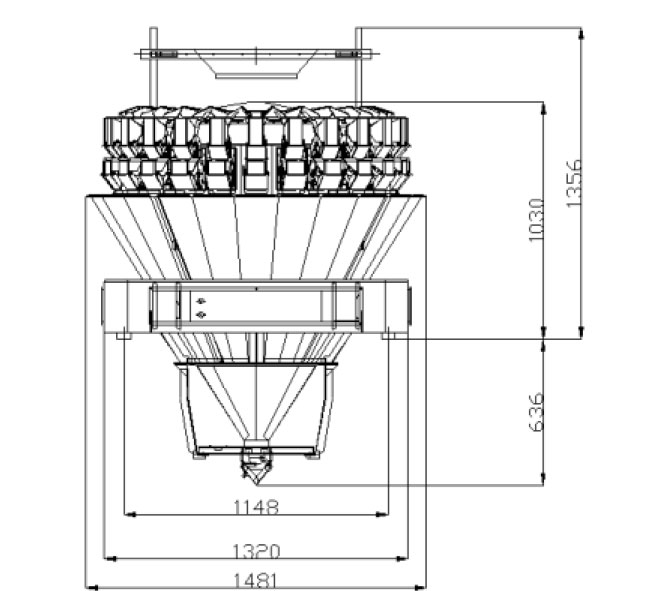

LAYOUT
MAIN FEATURES
- Memory bucket provides doubled combinations
- Each kind is individually weighed
- Auto compensation to control the final total weight
- Customized high precision loadcell for small weight portion
- Modular system to minimize fail rate and downtime
- Enhanced CPU provides 15% more efficiency
- Compact bucket suitable for small weights mixing
- Tool-less dismantle for all food contact parts
- Larger colored touch screen HMI
- Production summary download via USB key
MIXING PLAN VIEW
|
HEAD
|
MIX
|
DISCHARGE POINT
|
SPEED
|
|---|---|---|---|
|
16
|
2
|
1
|
75 wpm
|
|
16
|
3
|
1
|
50 wpm
|
|
16
|
4
|
1
|
45 wpm
|
|
24
|
6
|
1
|
50 wpm
|
|
24
|
3
|
2
|
50*2 wpm
|
|
24
|
4
|
1
|
75 wpm
|
|
32
|
8
|
1
|
50 wpm
|
|
32
|
4
|
2
|
50*2 wpm
|
